2507 Super Duplex Stainless Steel Bar-The Top Choice for Corrosion Resistance and Mechanical Strength Beyond 2205
● Transport: By bulk or Containers;
● Supply ability: 3000 metric tons/ month;
● Payment terms L/C, T/T;
● It can pack by container or bulk vessel.
● Standard export seaworthy package, it use steel belt with bundle according product's size.
● We can make it as your requirement.

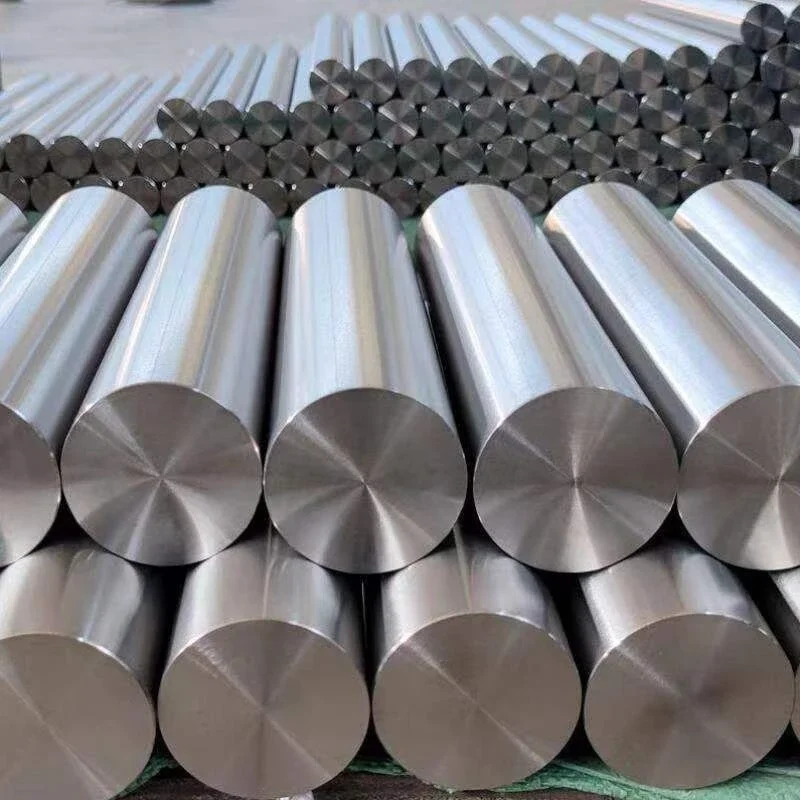

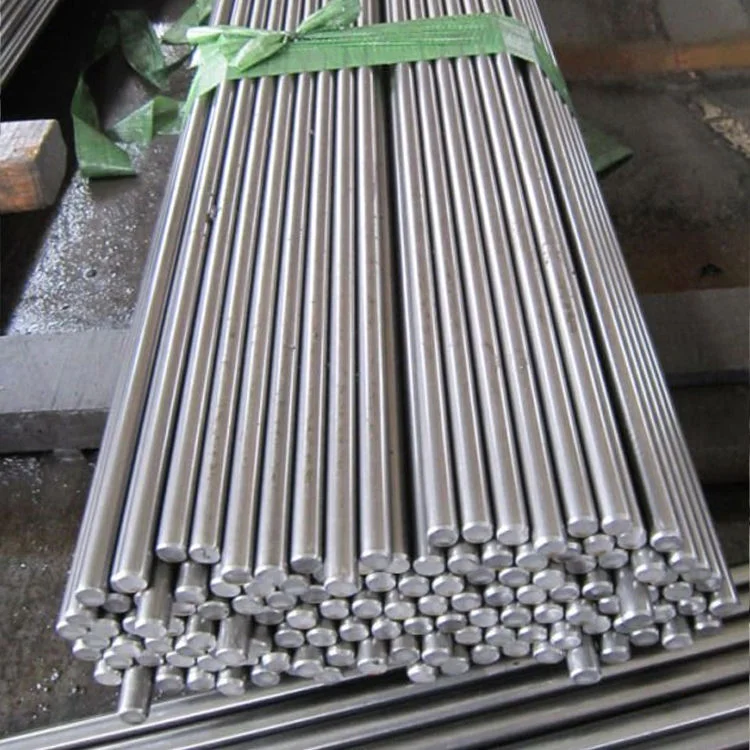

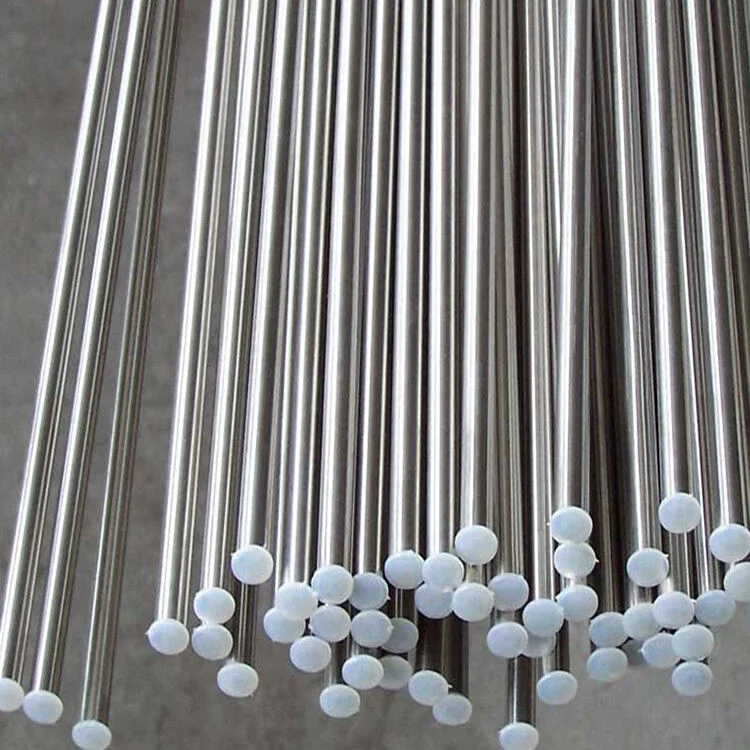

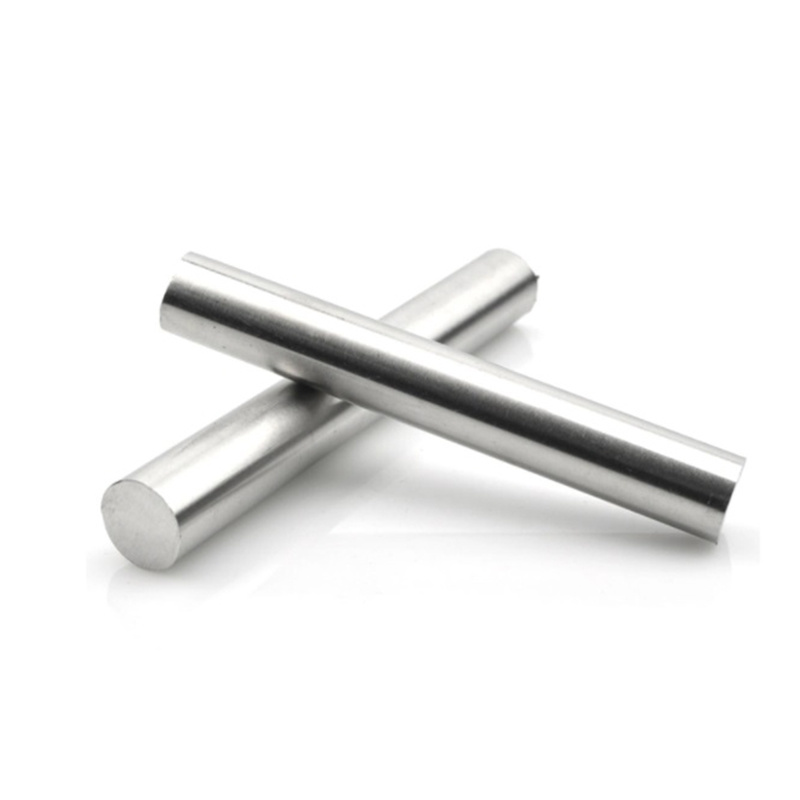

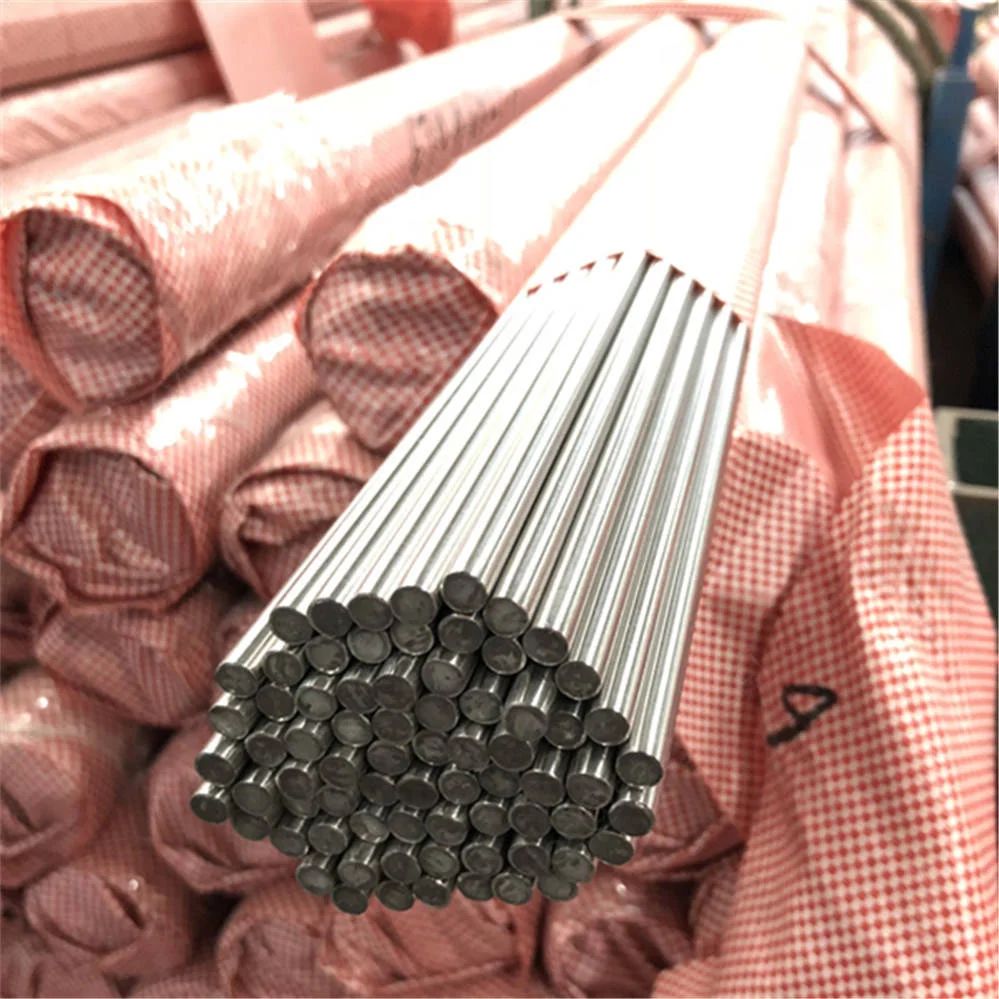

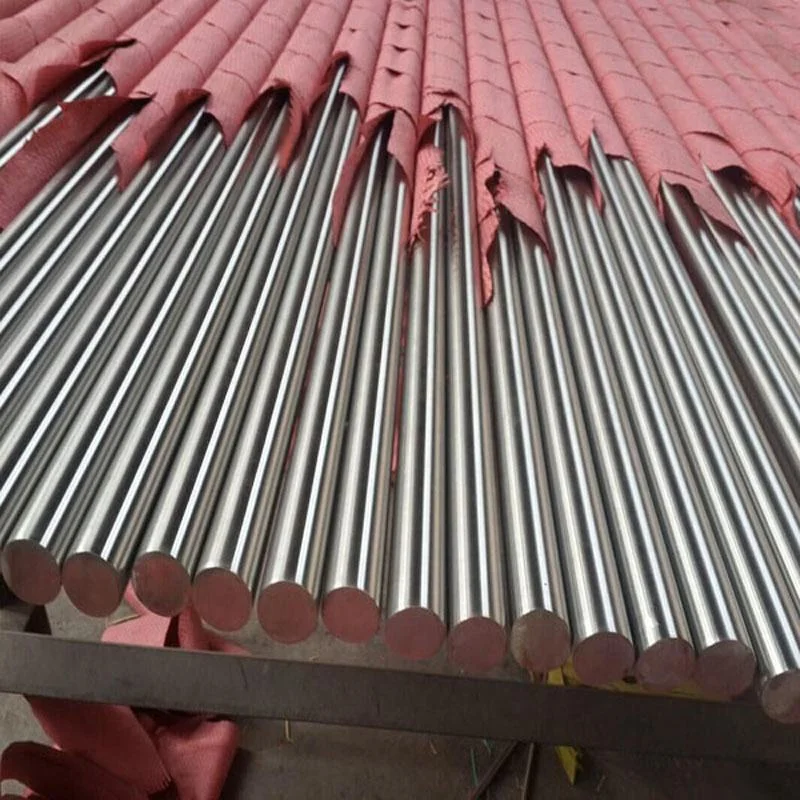

2507 Duplex Stainless Steel Bar Description
2507 duplex stainless steel bar is made of an ultra-duplex stainless steel containing 25% chromium, 4% molybdenum and 7% nickel. In terms of chemical composition, 2507 stainless steel has relatively high content of chromium and molybdenum, which accounts for its strong corrosion resistance to various acids. Besides, it has excellent resistance to stress corrosion cracking owing to the duplex construction of 2507 stainless steel. 2507 stainless steel bars show excellent corrosion resistance in environments containing chloride ions, which makes it ideal for construction and related industries. In addition, 2507 stainless steel also has excellent mechanical properties including high compressive strength, impact strength and low coefficient of thermal expansion. So 2507 duplex stainless steel bars are widely adopted as manufacturing parts in fields including oil and gas, water treatment, fire protection, desalination equipment, mechanical parts and fuel gas purification equipment.
Product Parameters
Product Name | 2507 Duplex Stainless Steel Bar | |
Type | Steel Bar | |
Outer Diameter | Round Bar | 4mm-500mm |
Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
Length | 1-6 meters, Length can be customized | |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
Surface | Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc. | |
Scope of Application | Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc. | |
Chemical Composition
C | Si | Mn | Cr | Ni | Mo | S | P |
≤ 0.03 | ≤ 0.8 | ≤ 1.2 | 24.0～26.0 | 6.0～8.0 | 3.0～5.0 | ≤ 0.02 | ≤ 0.035 |
Mechanical Properties
Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
≥795 | ≥550 | ≥15 | ≤ 310HB |
Physical Performance
Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
7.75 | 200 | 13.0 | 17.0 | 80 |
