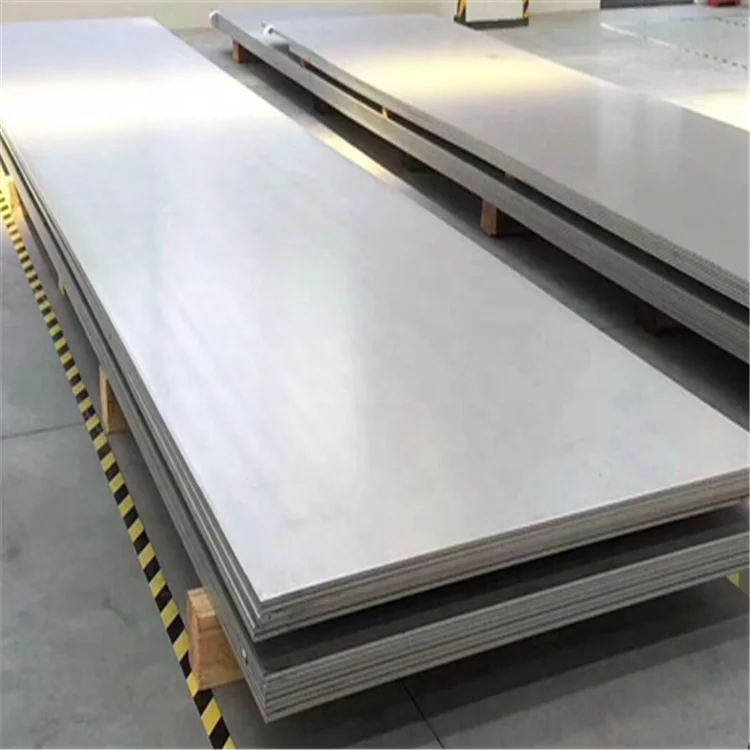

316L stainless steel plate-molybdenum element blessing
● Transport: By bulk or Containers;
● Supply ability: 3000 metric tons/ month;
● Payment terms L/C, T/T;
● It can pack by container or bulk vessel.

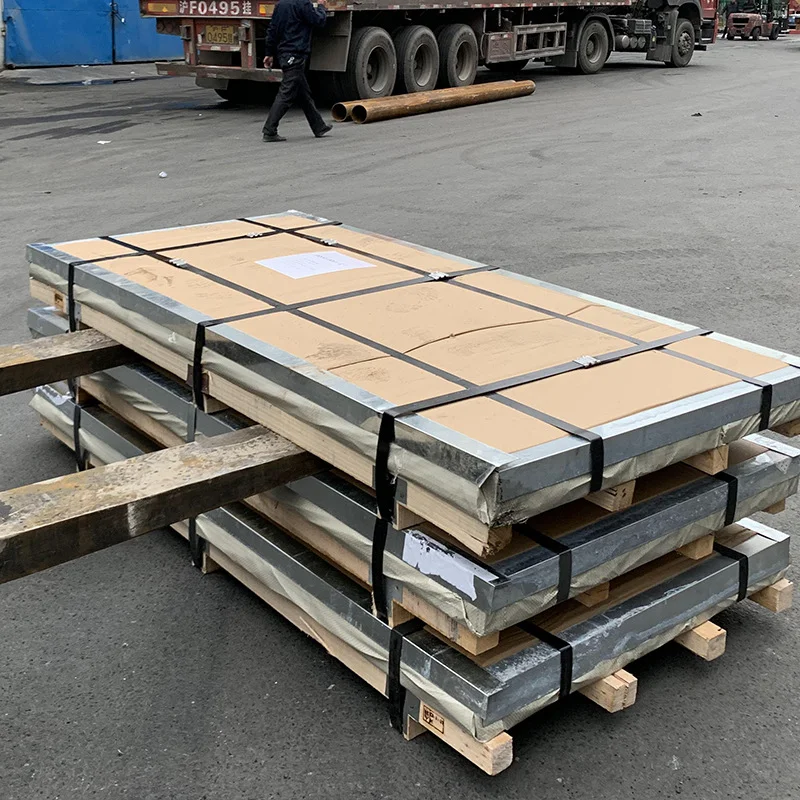

● Standard export seaworthy package, it use steel belt with bundle according product's size.
● We can make it as your requirement.
Profile
316L stainless steel is a variant of 316 stainless steel with a lower carbon content and is used where welding is required. The lower carbon content minimizes the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides may cause intergranular corrosion of stainless steel in certain environments. Basically, using 316L eliminates the need to anneal weld joints prior to using the completed metal form, saving time and effort.
316L stainless steel is the second most widely used stainless steel after 304, and its corrosion resistance is better than 304. High temperature resistance is also better, up to 1000 degrees. 316L stainless steel is a kind of universal stainless steel material, rust resistance is stronger than 200 series stainless steel material. 316L stainless steel is widely used in the chemical industry because of its excellent corrosion resistance.
Product Description
Product | 316L Stainless Steel Sheet |
Surface Finish | BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside |
Technique | Hot Rolled / Cold Rolled |
Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc |
Width | 500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required |
Length | 500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required |
Thickness | 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required |
Material | 201, 202 |
Color | Standard RAL color: Red, Blue, White, Grey, Brick, etc. |
Stock Dimension | Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request |
Service | OEM, Customized processing service, Customized fabrication by drawings |
Processing Type | Cutting, Bending, Stamping, Welding, CNC machining |
Cutting Type | Laser cutting; Water-jet cutting; Flame cutting |
Protection | 1. Inter paper available |
Application | Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration |
Chemical Composition
C | Si | Mn | Cr | Ni | S | P | Mo |
≤ 0.03 | ≤1.0 | ≤ 2.0 | 16.0～18.0 | 10.0～14.0 | ≤ 0.03 | ≤ 0.045 | 2.0～3.0 |
Mechanical Properties
Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
≥480 | ≥177 | ≥ 40 | ≤ 187HB;≤ 90HRB;≤ 200HV |
Physical Performance
Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
7.99 | 193 | 16.0 | 16.2 | 74 |
