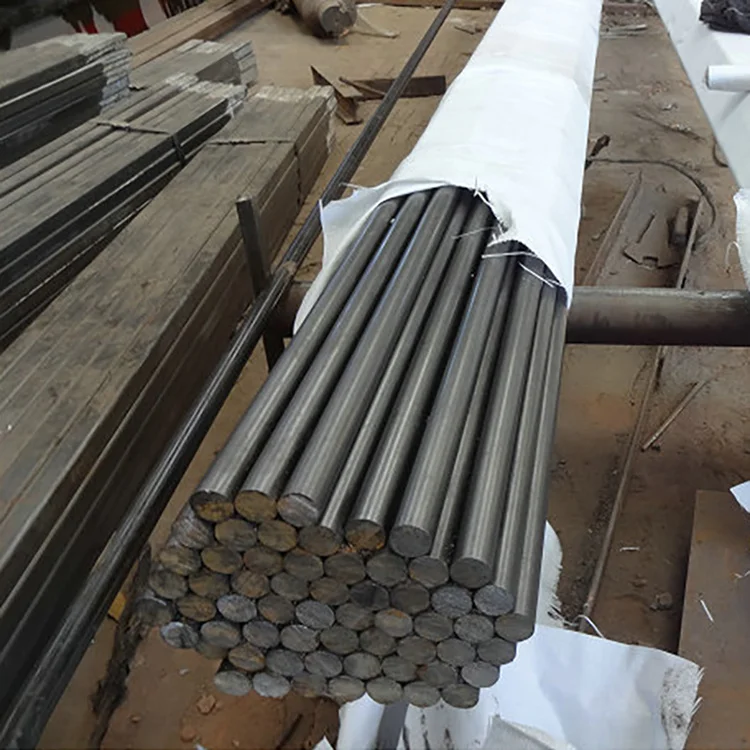

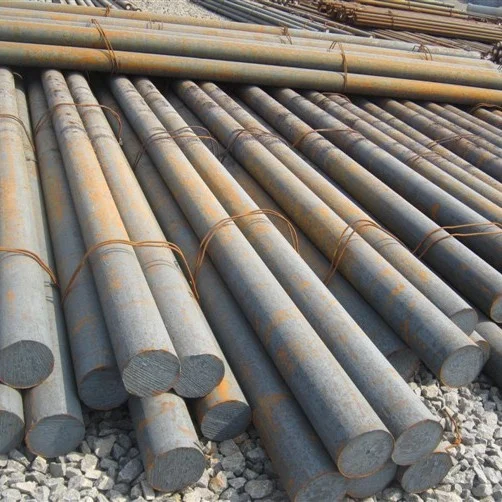

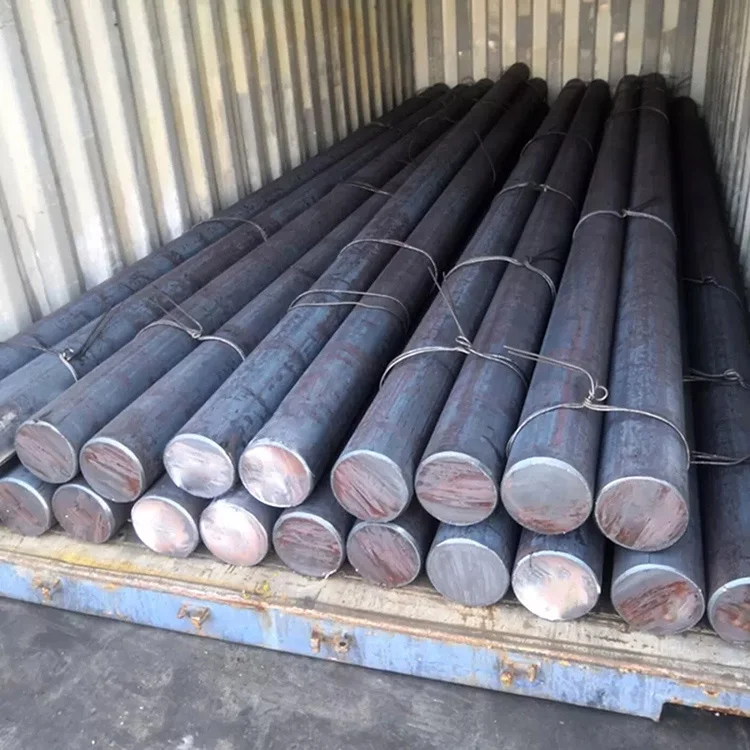

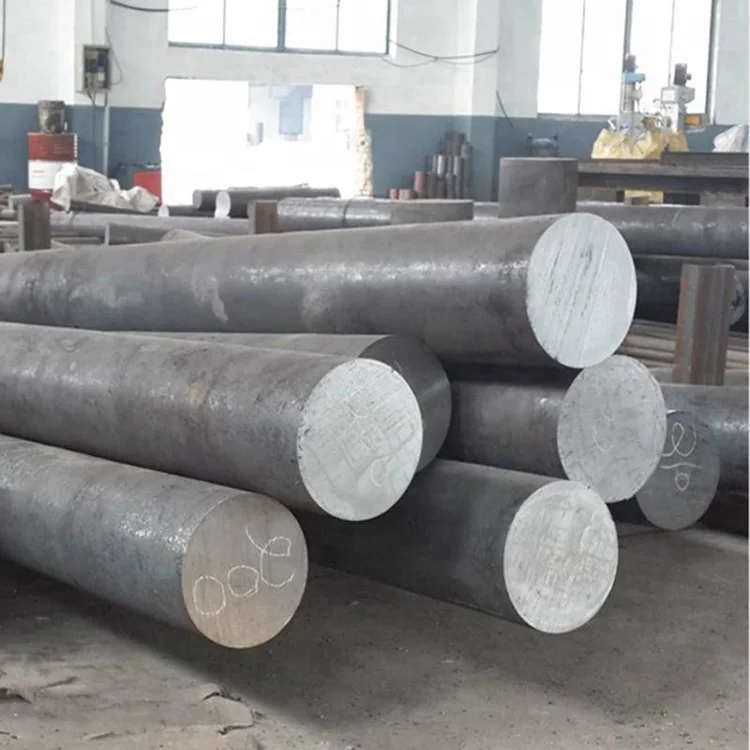

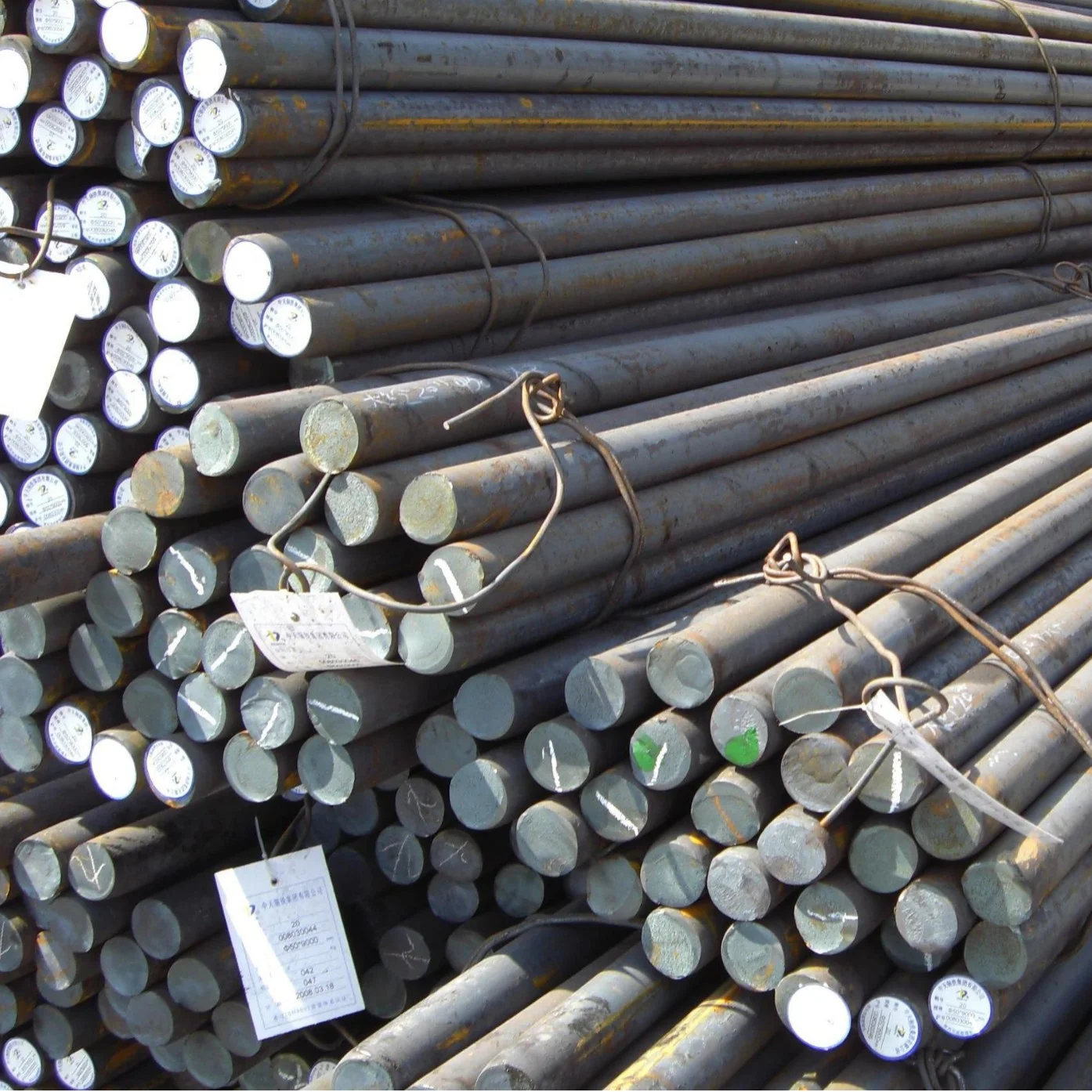

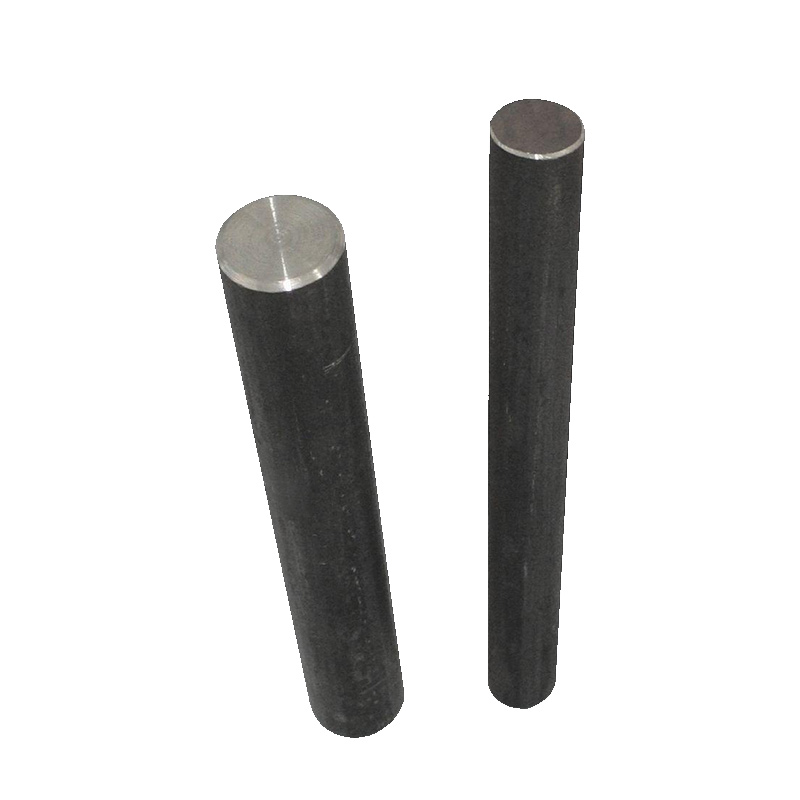

A105 carbon steel round steel-piping system flange and forging blank

A105 carbon steel round steel-piping system flange and forging blank

A105 is an ASTM specification for steel forgings, primarily for carbon steel forged pipe components. The type of carbon steel wrought alloy involved is a low carbon, manganese and silicon steel similar to the AISI 1330, but with a lower manganese content.

sales1@fuchuanmetal.com

Message

EN 10219 S235JRH cold forming welded hollow profile-economical and efficient building structural pipe

1045 C45 medium carbon steel round steel-high hardness and high wear resistance after quenching

Product details

Product Parameters

Product Name	A105 Round Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

Carbon Steel	C	Si	Mn	P	S	Cr
A105	0.35	0.10-0.35	0.60-1.05	0.035	0.040	0.30

Mechanical Properties

Tensile Strength (N/mm2)	Elongation %	Maximum Hardness HB
485	22	187

Scope of Application

A105 is used in trucks and marine components, railway vehicles, petrochemicals, milk mixers, engineering, general structural purposes, offshore and onshore services, etc.
