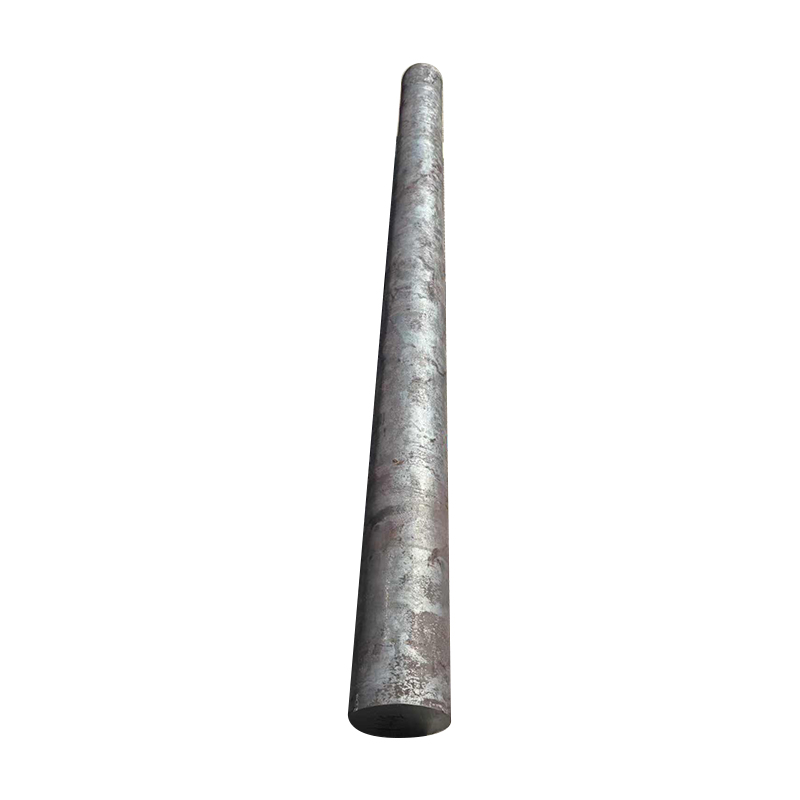

A36 carbon steel round steel-good comprehensive properties and weldability

A36 carbon steel round steel-good comprehensive properties and weldability

A36 is a carbon structural steel whose chemical composition and mechanical properties strictly conform to American ASTM standards. A36 steel bar mainly consists of iron, carbon, silicon, manganese, phosphorus, sulfur and other elements. Iron constitutes more than 99% of the entire chemical composition. Its carbon content proportion is relatively high, around 0.2%, ensuring that the steel has a certain hardness and toughness.

sales1@fuchuanmetal.com

Message

1045 C45 medium carbon steel round steel-high hardness and high wear resistance after quenching

A572 Gr.50 S355JR Carbon Steel Round Steel-Cost-effective Selection of Heavy Equipment Structural Parts

Product details

Product Parameters

Product Name	A36 Round Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

C	Cu	Fe	Mn	P	Si	S
0.25-0.290	0.20	98.0	1.03	0.040	0.280	0.050

Mechanical Properties

A36	Limit Tensile Strength	Tensile Strength, Yield Strength	Elongation at Break (Unit: 200mm)	Elongation at Break (Unit: 50mm)	Modulus of Elasticity	Bulk Modulus (Typical for Steel)	Poisson's Ratio	Shear Modulus
Metric	400-550 MPa	250 MPa	20.0 %	23.0 %	200 GPa	140 GPa	0.260	79.3 GPa
Imperial	58000-79800 psi	36300 psi	20.0 %	23.0 %	29000 ksi	20300 ksi	0.260	11500 ksi

Physical Performance

Physical Performance	Metric	Imperial
Density	7.85 g/cm3	0.284 lb/in3

Scope of Application

Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.

Equivalent Material

National Standard GB	European Standard EN	American Standard ASTM	German Standard DIN,WNr	Japanese Standard JIS	French Standard AFNOR	British Standard BS	Canada HG
Q235B	S235JR	A283C	St37-2	SM400A	E24-2	40A/40B	230G
Italy UNI	India IS	Switzerland SS	Australia ONORM	Norway NS	Spain UNE	International Standards ISO	Portugal NP
Fe360B	IS2062	1311/1312	RSt360B	NS12123	AE235B-FN	E235B/Fe360B	FE360-B
