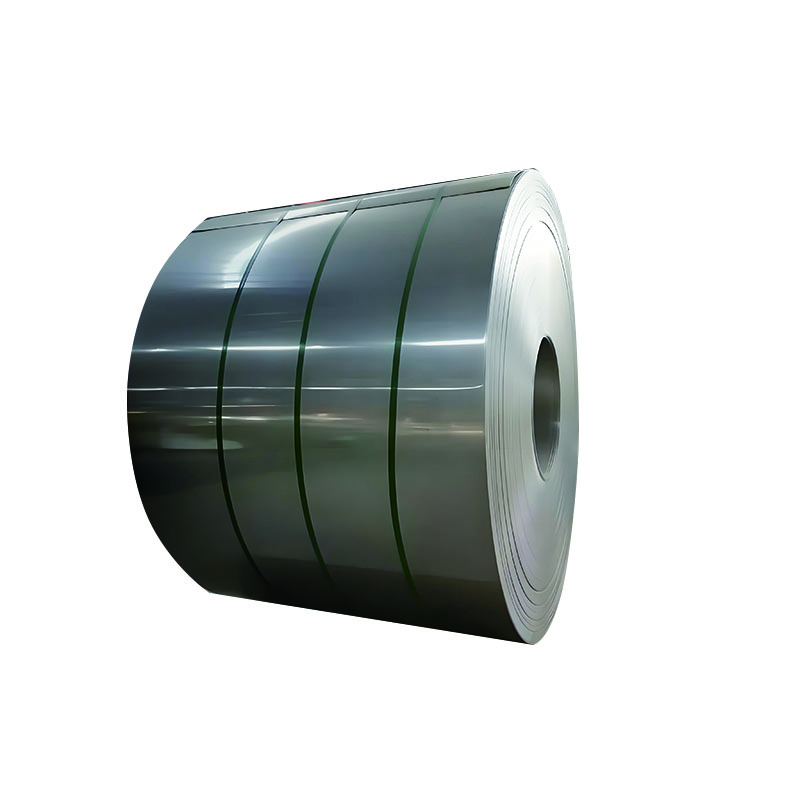

A633 Gr.C D normalized steel coil-fine grain and high strength

A633 Gr.C D normalized steel coil-fine grain and high strength

A633 carbon steel coil is a normalized high-strength low-alloy structural steel coil used for welded, riveted or bolted structures. This material is suitable for use at lower ambient temperatures where the required notch toughness is better than that expected for rolled materials of comparable strength. The material has good austenite grain size and should be normalized by heat treatment.

sales1@fuchuanmetal.com

Message

A573 Gr.65 A573M structural steel coil-normalizing treatment to improve toughness

A656GR.50S35J2 steel coil-excellent formability combined with high strength

Product details

Product Parameters

Product Name	A633 Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A633	C	Mn	P	S	Si	V	Nb
Grade A	≤ 0.18	1.00-0.35	0.035	0.04	0.15-0.50	-	≤ 0.05
Grade C	≤ 0.20	0.15-0.50	0.035	0.04	0.15-0.50	-	0.01-0.05
Grade D	≤ 0.20	0.70-1.35	0.035	0.04	0.15-0.50	-	-
Grade E	≤ 0.22	1.15-1.50	0.035	0.04	0.15-0.50	0.04-0.11	-

Mechanical Properties

A633	Yield Strength			Tensile Strength			Elongation 200 mm, min %	Elongation 50 mm, min %
A633	65 mm	65-100 mm	100-150 mm	65 mm	65-100 mm	100-150 mm	Elongation 200 mm, min %	Elongation 50 mm, min %
Grade A	290	290	-	430-570	430-570	-	18	23
Grade C&D	345	315	-	485-620	450-590	-	18	23
Grade E	415	415	380	550-690	550-690	515-655	18	23

Physical Performance

Physical Performance	Metric	Imperial
Density	7.75 g/cc	0.280 lb/in³

Scope of Application

ASTM A633 steel plate is mainly used in petroleum, chemical, power station, boiler and other industries, for the production of reactors, heat exchangers, separators, spherical tanks, oil and gas pipelines, liquefied gas tanks, shell nuclear reactor pressure, boiler drums, liquefied petroleum gas cylinders, high pressure water pipes, water turbines and other equipment and components.
