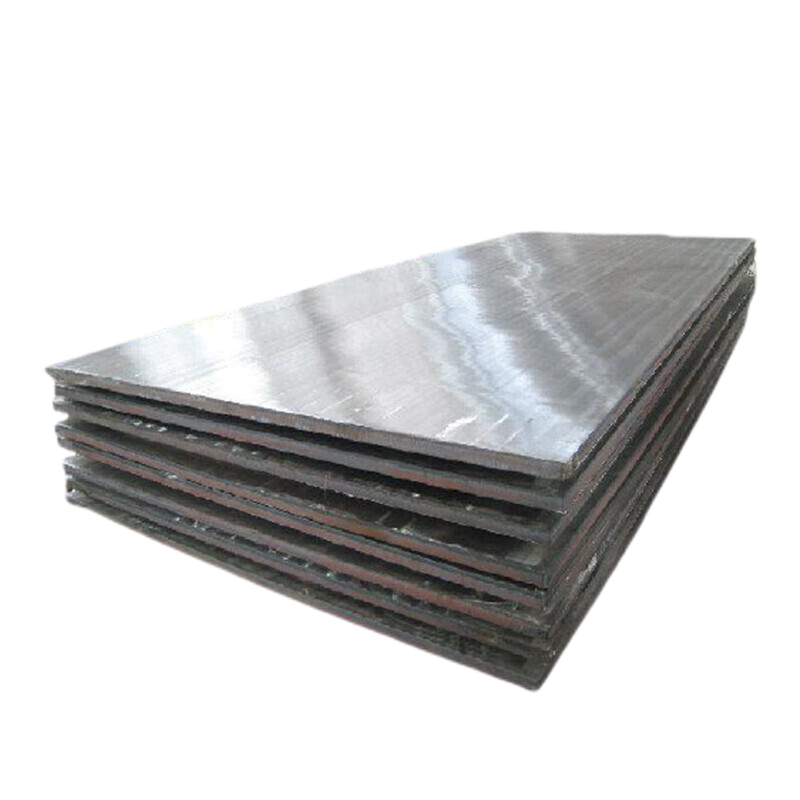

A633 Gr.C D steel plate-normalized fine grain high strength steel

A633 Gr.C D steel plate-normalized fine grain high strength steel

A633 carbon steel plate is a normalized high-strength low-alloy structural steel plate used for welded, riveted or bolted structures. This material is suitable for use at lower ambient temperatures where the required notch toughness is better than that expected for rolled materials of comparable strength. The material should have good austenite grain size and should be normalized by heat treatment.

sales1@fuchuanmetal.com

Message

A573 Gr.65 A573M steel plate-used in low temperature environment and impact load structure

A283Gr.Q195 hot rolled coil-good ductility and weldability

Product details

Product Parameters

Product Name	A633 Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A633	C	Mn	P	S	Si	V	Nb
Grade A	≤ 0.18	1.00-0.35	0.035	0.04	0.15-0.50	-	≤ 0.05
Grade C	≤ 0.20	0.15-0.50	0.035	0.04	0.15-0.50	-	0.01-0.05
Grade D	≤ 0.20	0.70-1.35	0.035	0.04	0.15-0.50	-	-
Grade E	≤ 0.22	1.15-1.50	0.035	0.04	0.15-0.50	0.04-0.11	-

Mechanical Properties

A633	Yield Strength			Tensile Strength			Elongation 200mm, min %	Elongation 50mm, min %
A633	65 mm	65-100 mm	100-150 mm	65 mm	65-100 mm	100-150 mm	Elongation 200mm, min %	Elongation 50mm, min %
Grade A	290	290	-	430-570	430-570	-	18	23
Grade C&D	345	315	-	485-620	450-590	-	18	23
Grade E	415	415	380	550-690	550-690	515-655	18	23

Physical Performance

Physical Performance	Metric	Imperial
Density	7.75 g/cc	0.280 lb/in³

Scope of Application

ASTM A633 steel plate is mainly used in petroleum, chemical, power station, boiler and other industries, for the production of reactors, heat exchangers, separators, spherical tanks, oil and gas pipelines, liquefied gas tanks, shell nuclear reactor pressure, boiler drums, liquefied petroleum gas cylinders, high pressure water pipes, water turbines and other equipment and components.
