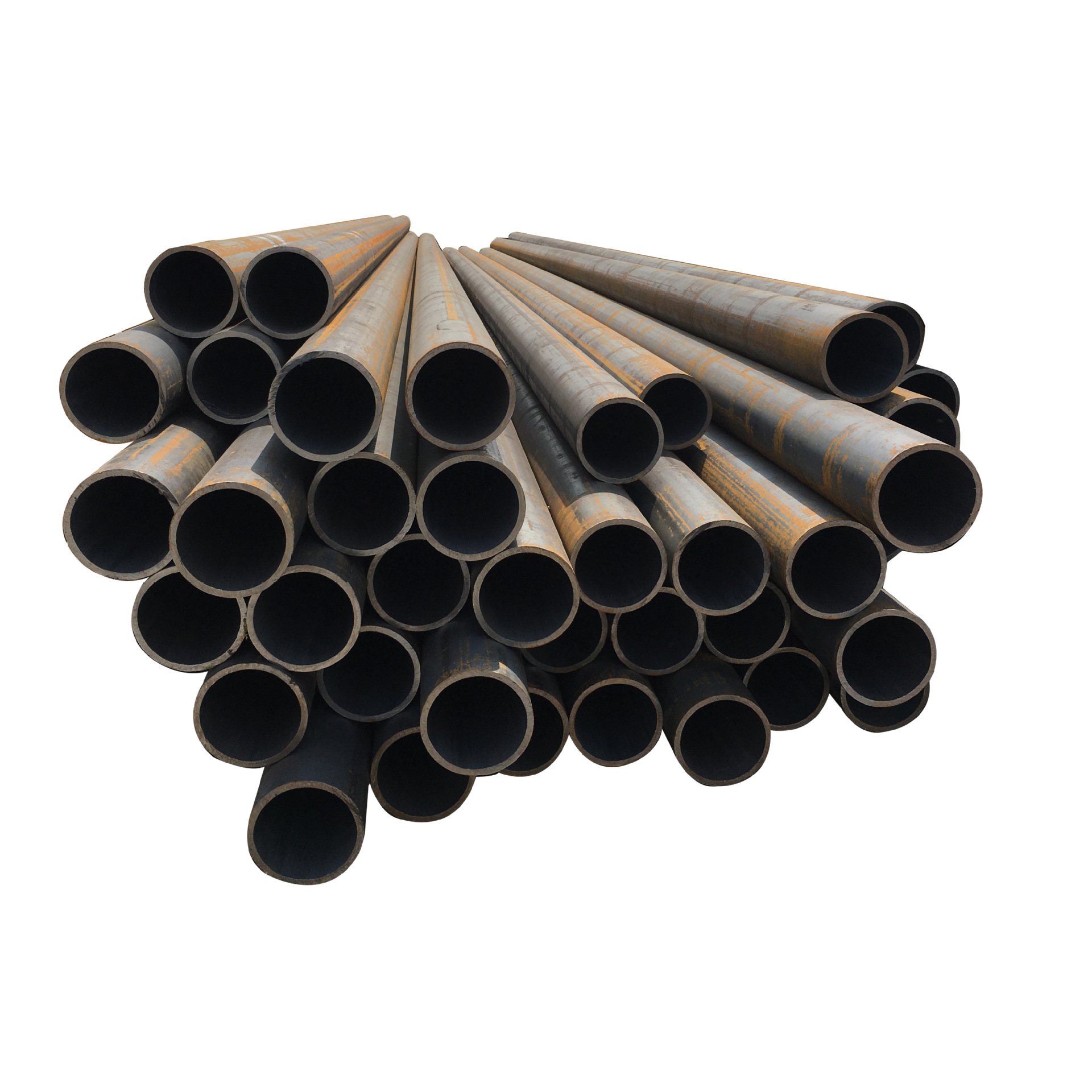

ASTM A252 welding spiral pile pipe-the first choice for bridge wind power foundation construction
Product Parameters
Product Name | A252 Seamless&Welded Pipe Piles | |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI etc. | |
Outer Diameter | Seamless: 1/4"-36" | Welding: 21.3mm-3620mm |
Round Tube: 1/2"-10" | Square Tube/Rectangular Tube: 15x15mm-400x600mm | |
Wall Thickness | Seamless: 1.25mm-50mm | Welding: 1.65mm-65mm |
Length | 3-12 meters, Support customization | |
Surface Process | Bright, Polished, Black | |
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |
Chemical Composition
Seamless and ERW Welded Pipe | Maximum Phosphorus Content 0.050% |
Mechanical Properties
A252 | Tensile Strength psi (Mpa) | Yield Strength psi (Mpa) |
Grade 1 | 50,000 (345) | 30,000 (205) |
Grade 2 | 60,000 (415) | 35,000 (240) |
Grade 3 | 66,000 (456) | 45,000 (310) |
Scope of Application
Pile foundation, micropile, manufacturing, bridge, structure, etc.
