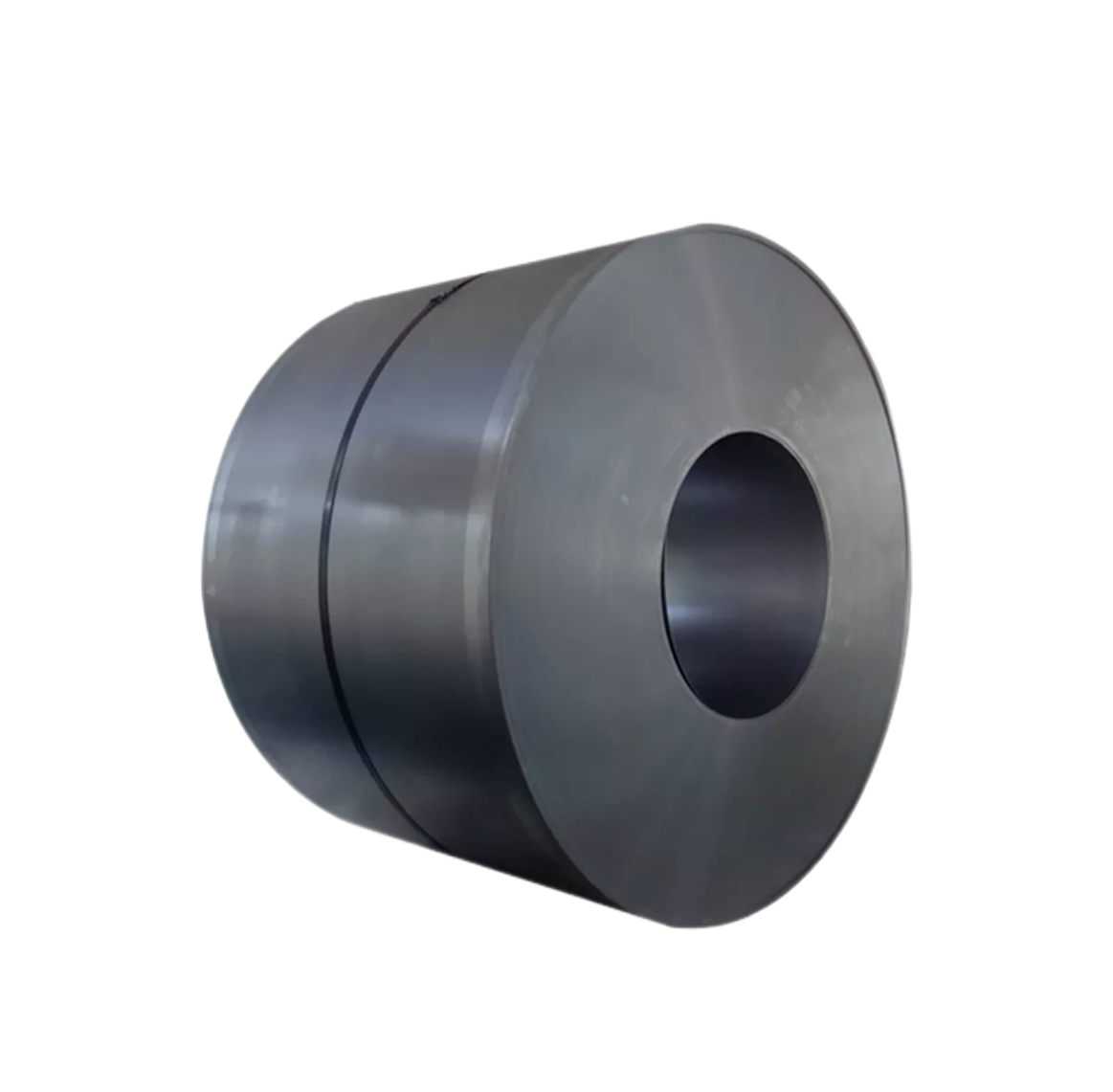

S355JR A572 Gr.50 hot-rolled steel coil-a cost-effective choice for heavy structure

S355JR A572 Gr.50 hot-rolled steel coil-a cost-effective choice for heavy structure

A572 is a low-carbon, low-alloy high-strength steel coil produced employing the electric furnace steelmaking technology. So the main component is scrap iron. Owing to its reasonable composition design and strict process control, A572 steel coil is widely favored for high purity and excellent performance. Its molten steel pouring manufacturing method not only gives the steel coil good density and uniformity, but also ensures that the steel coil has superior mechanical properties after cooling.

sales1@fuchuanmetal.com

Message

A36 Q235B S235JR Standard Selection of Hot Rolled Coils-Equipment Structural Parts

A514 quenched and tempered steel coil-raw material for key load-bearing parts of construction machinery and mining equipment

Product details

Product Parameters

Product Name	A572/S355JR Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A572	C	Mn	P	S	Si
Grade 42	0.21	1.35	0.03	0.03	0.15-0.4
Grade 50	0.23	1.35	0.03	0.03	0.15-0.4
Grade 60	0.26	1.35	0.03	0.03	0.40
Grade 65	0.23-0.26	1.35-1.65	0.03	0.03	0.40

Mechanical Properties

A572	Yield Strength (Ksi)	Tensile Strength (Ksi)	Elongation % 8 inches
Grade 42	42	60	20
Grade 50	50	65	18
Grade 60	60	75	16
Grade 65	65	80	15

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.

Equivalent Material

EU	German Standard	Japanese Standard	French Standard	British Standard	Canada	Italy	Spain	National Standard	International	Portugal	India
EN	DIN, WNr	JIS	AFNOR	BS	HG	UNI	UNE	GB	ISO	NP	IS
S355JR	St52-3	SM490A	E36-2	50B	350W	Fe510B	AE355B	Q345B	E355C	FE510-B	IS961
