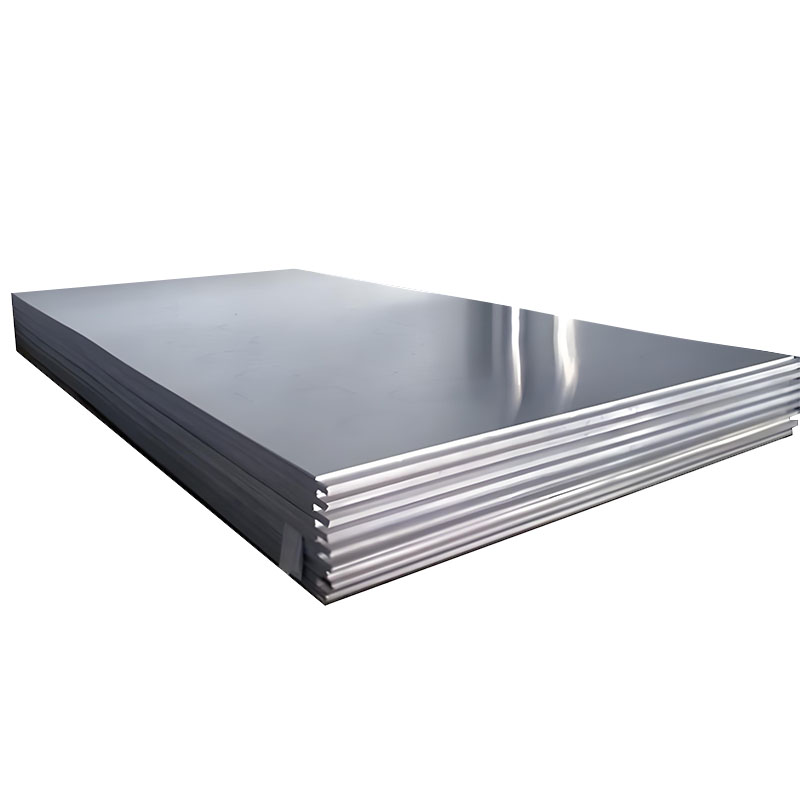

A656 Gr.50 S354J2 steel plate-excellent formability combined with high strength
Product Parameters
Product Name | A656/S355J2 Carbon Steel Plate |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
A656 | C | Mn | P | S | Si | V | N | Nb |
Type 3 | 0.18 | 1.65 | 0.025 | 0.035 | 0.60 | 0.08 | 0.020 | 0.008-0.10 |
Type 7 | 0.18 | 1.65 | 0.025 | 0.035 | 0.60 | 0.15 | 0.020 | 0.10 max |
Mechanical Properties
A656 | Yield Strength Mpa | Tensile Strength Mpa | Elongation 200mm, % | Elongationin 50mm, % |
Grade 50 | 345 | 415 | 485 | 550 |
Grade 60 | 415 | 485 | 550 | 650 |
Grade 70 | 20 | 17 | 14 | 12 |
Grade 80 | 23 | 20 | 17 | 15 |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.80 g/cc | 0.282 lb/in³ |
Scope of Application
ASTM A656 steel plate is a series of high-strength low-alloy steels that can improve weldability, formability and notch toughness in the rolled condition. ASTM A656 steel plate is used in construction equipment, crane booms, automobile frames and general manufacturing. It is suitable for low temperature environments.
Equivalent Material
European Standard | American Standard | German Standard | Japanese Standard | France | United Kingdom |
S355J2 | A656 | St52-3N(1.0577) | SS490YA | A52FP | 224-460 |
Old European Standard | Italy | National Standard | Switzerland | South America | - |
Fe510D2(S355J2G4) | S355J2G4 | Q345D | 2134-01 | 11531 | - |
