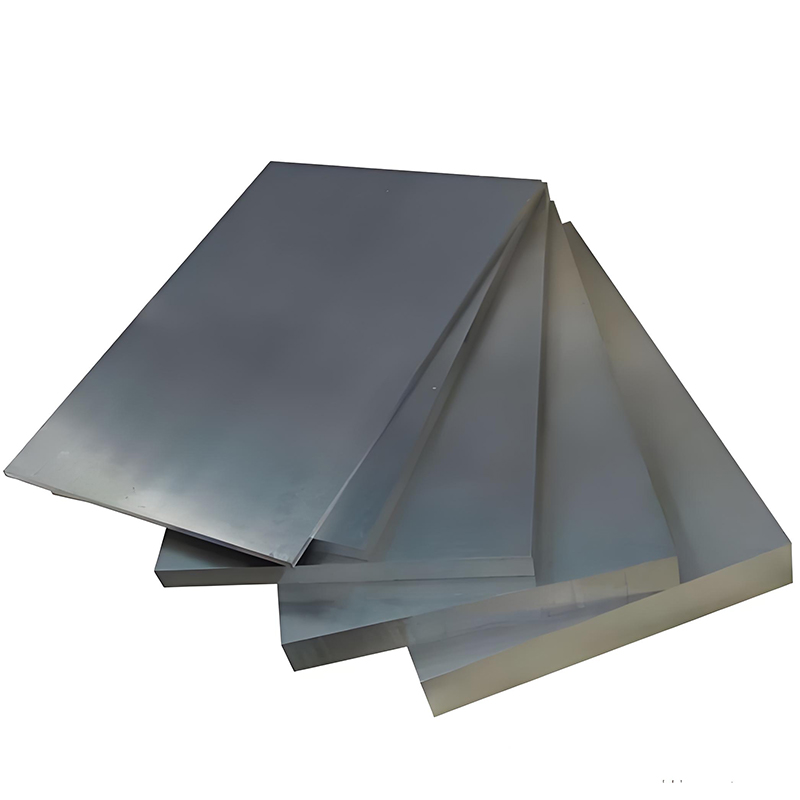

A36 Q235B S235JR Steel Plate-Standard Selection of Building Bridge Foundation Structure
Product Description
Product Name | A36/Q235/S235JR Carbon Steel Plate |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
C | Cu | Fe | Mn | P | Si | S |
0.25~0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
A36 | Limit Tensile Strength | Tensile Strength, Yield Strength | Elongation at Break (Unit: 200mm) | Elongation at Break (Unit: 50mm) | Modulus of Elasticity | Bulk Modulus (Typical for Steel) | Poisson's Ratio | Shear Modulus |
Metric | 400~550 MPa | 250 MPa | 20.0% | 23.0 % | 200 GPa | 140 GPa | 0.260 | 79.3 GPa |
Imperial | 58000~79800 psi | 36300 psi | 20.0% | 23.0 % | 29000 ksi | 20300 ksi | 0.260 | 11500 ksi |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.85 g/cm3 | 0.284 lb/in3 |
Scope of Application
Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.
Equivalent Material
National Standard GB | European Standard EN | American Standard ASTM | German Standard DIN, WNr | Japanese Standard JIS | French Standard AFNOR | British Standard BS | Canada HG |
Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
Italy UNI | India IS | Switzerland SS | Australia ONORM | Norway NS | Spain UNE | International Standards ISO | Portugal NP |
Fe360B | IS2062 | 1311/1312 | RSt360B | NS12123 | AE235B-FN | E235B / Fe360B |
