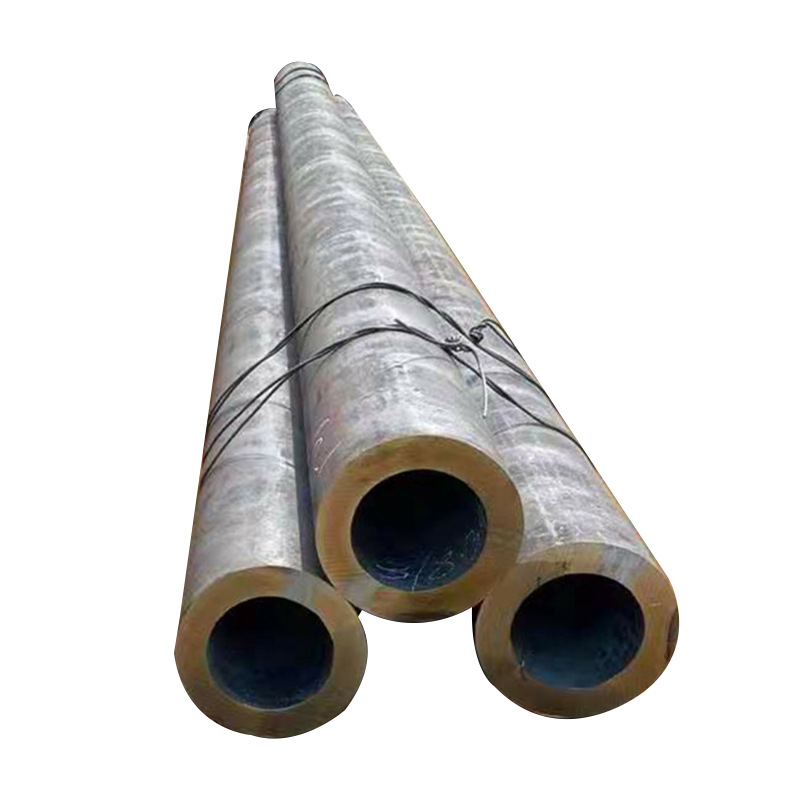

ASTM A106 Seamless Carbon Steel Pipe for High Temperature-High Temperature and High Pressure Resistance

ASTM A106 Seamless Carbon Steel Pipe for High Temperature-High Temperature and High Pressure Resistance

A106 steel pipe is a low carbon steel pipe whose main components are carbon, silicon, manganese and small amounts of chromium, copper, nickel and molybdenum. It is a seamless steel pipe suitable for transporting liquids and gases in high temperature and high pressure environments. The manufacturing process of A106 steel pipe usually includes steps such as hot rolling, cold drawing and cold working. During these processes, the internal structure of the pipe is made tighter through heat and pressure treatment, thereby improving its strength and corrosion resistance. A106 steel pipe can be used in many different fields, such as oil, natural gas, chemical industry, electric power, shipbuilding, aerospace, etc..

sales1@fuchuanmetal.com

Message

ASTM A53 carbon steel pipe-universal galvanized black pipe

ASTM A335 Seamless Alloy Steel Pipe for High Temperature-Core Pipe of High Temperature and High Pressure Piping System of Power Station

Product details

Product Description

Product Name	A106 Grade B Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A106	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
Grade A	0.25	0.27-0.93	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08
Grade B	0.30	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08
Grade C	0.35	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08

Mechanical Properties

A106	Grade A	Grade B	Grade C
Tensile Strength min. psi	48,000	60,000	70,000
Yield Strength min. psi	30,000	35,000	40,000

Scope of Application

ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers and ships. These pipes must transport fluids and gases with high temperature and pressure levels.
