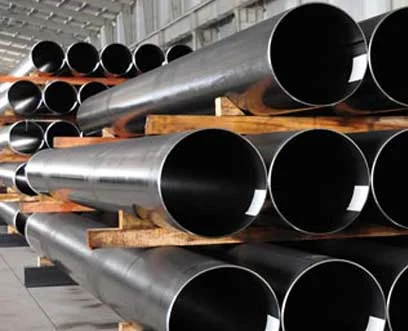

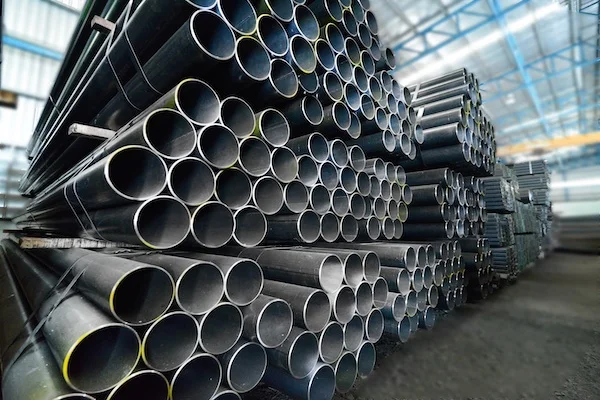

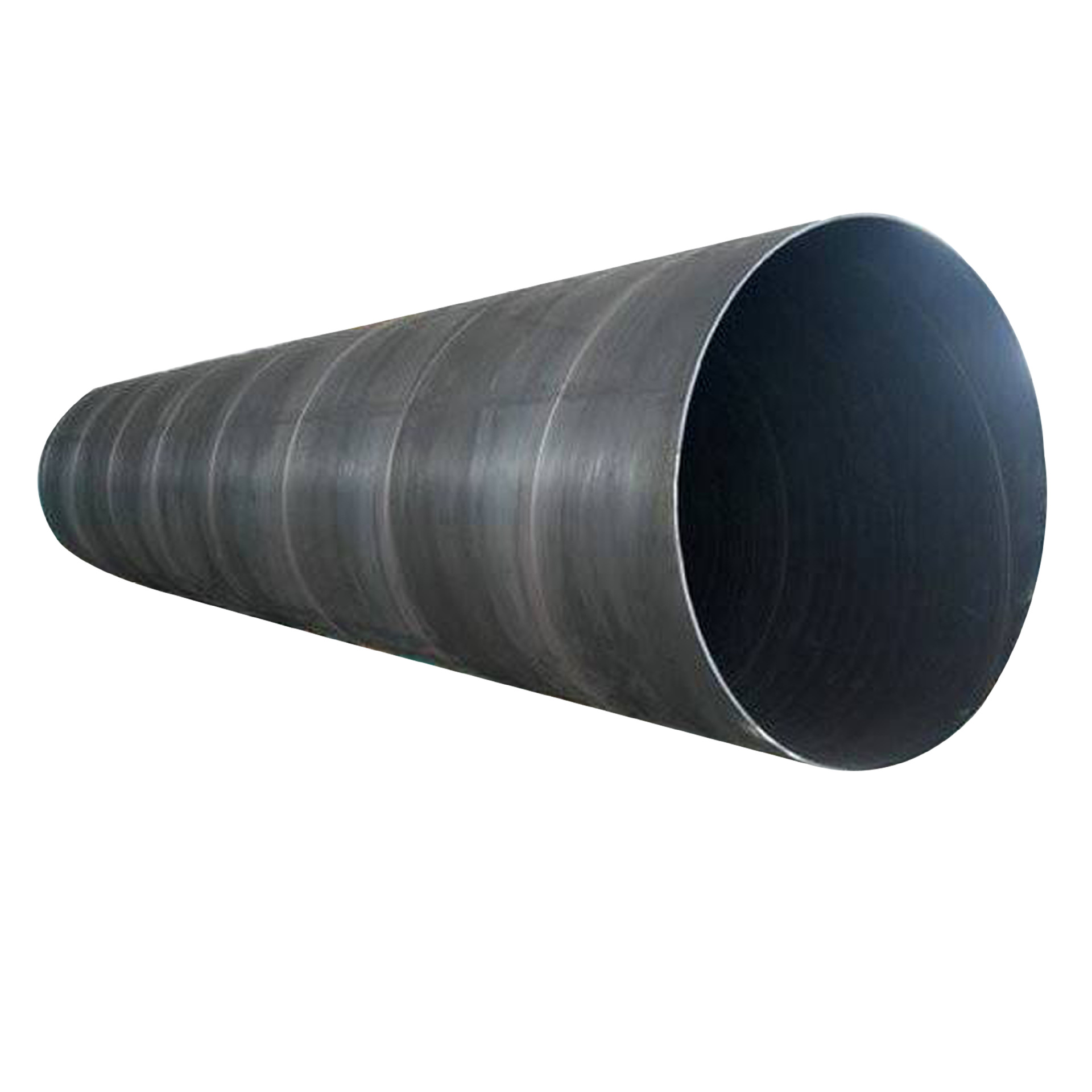

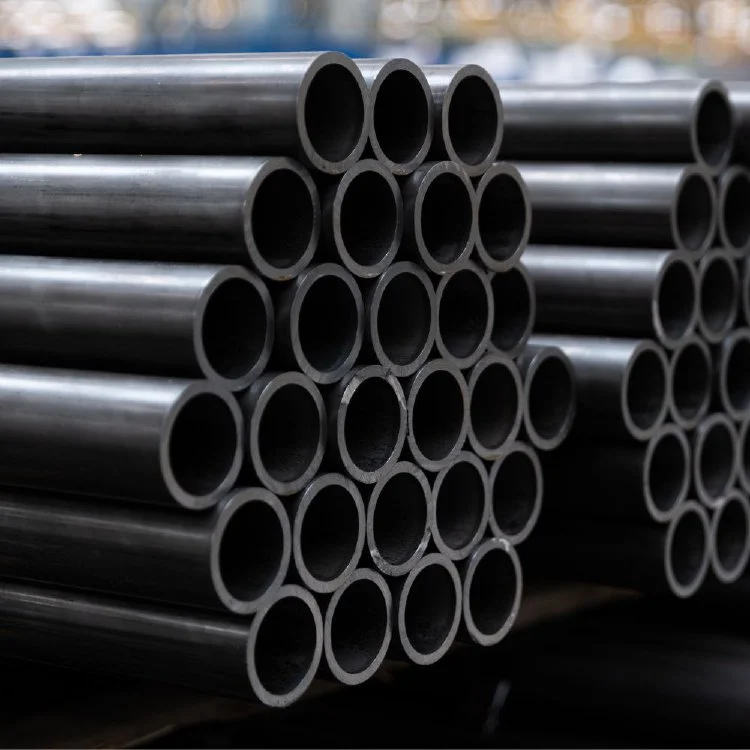

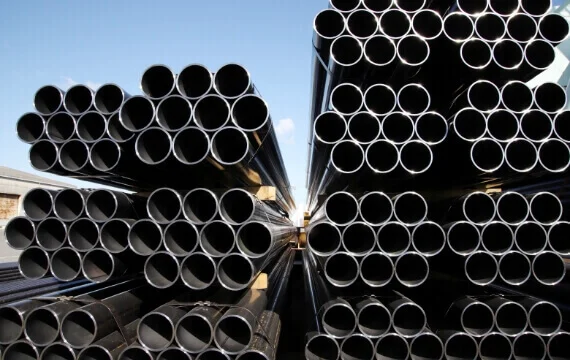

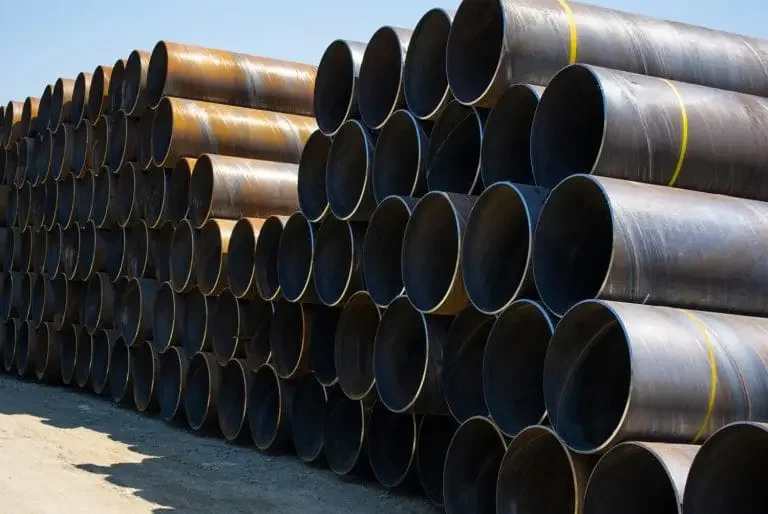

ASTM A53 carbon steel pipe-universal galvanized black pipe

ASTM A53 carbon steel pipe-universal galvanized black pipe

A53 American standard seamless steel pipe is made of high-quality steel billets through hot rolling, cold drawing and other processes. The chemical composition and mechanical properties of this steel pipe comply with the requirements of American standard ASTM A53/A53M.

sales1@fuchuanmetal.com

Message

A656GR.50S35J2 steel coil-excellent formability combined with high strength

ASTM A106 Seamless Carbon Steel Pipe for High Temperature-High Temperature and High Pressure Resistance

Product details

Product Description

Product Name	A335 Seamless Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A335	UNS	C ≤	Mn	P ≤	S ≤	Si ≤	Cr	Mo
P1	K11522	0.10-0.20	0.30-0.80	0.025	0.025	0.10-0.50	-	0.44-0.65
P2	K11547	0.10-0.20	0.30-0.61	0.025	0.025	0.10-0.30	0.50-0.81	0.44-0.65
P5	K41545	0.15	0.30-0.60	0.025	0.025	0.5	4.00-6.00	0.44-0.65
P5b	K51545	0.15	0.30-0.60	0.025	0.025	1.00-2.00	4.00-6.00	0.44-0.65
P5c	K41245	0.12	0.30-0.60	0.025	0.025	0.5	4.00-6.00	0.44-0.65
P9	S50400	0.15	0.30-0.60	0.025	0.025	0.50-1.00	8.00-10.00	0.44-0.65
P11	K11597	0.05-0.15	0.30-0.61	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65
P12	K11562	0.05-0.15	0.30-0.60	0.025	0.025	0.5	0.80-1.25	0.44-0.65
P15	K11578	0.05-0.15	0.30-0.60	0.025	0.025	1.15-1.65	-	0.44-0.65
P21	K31545	0.05-0.15	0.30-0.60	0.025	0.025	0.5	2.65-3.35	0.80-1.60
P22	K21590	0.05-0.15	0.30-0.60	0.025	0.025	0.5	1.90-2.60	0.87-1.13
P91	K91560	0.08-0.12	0.30-0.60	0.02	0.01	0.20-0.50	8.00-9.50	0.85-1.05
P92	K92460	0.07-0.13	0.30-0.60	0.02	0.01	0.5	8.50-9.50	0.30-0.60

Mechanical Properties

A335	UNS	Yield Strength Ksi	Tensile Strength Ksi	Elongation%
P1	K11522	30	55	30
P2	K11547	30	55	30
P5	K41545	40	70	30
P9	S50400	30	60	30
P11	K11597	30	60	20
P12	K11562	32	60	30
P22	K21590	30	60	30
P91	K91560	60	85	20

Scope of Application

The specification covers "chrome-molybdenum" seamless pipes with excellent corrosion resistance and high temperature tensile strength. Generally, ASTM A335 P11, P22, and P91 pipelines are used for power generation and downstream oil and gas, and P5 and P9 grades are used for refinery applications.
